翅片式多管冷却器(卧式) |
||||||||
|

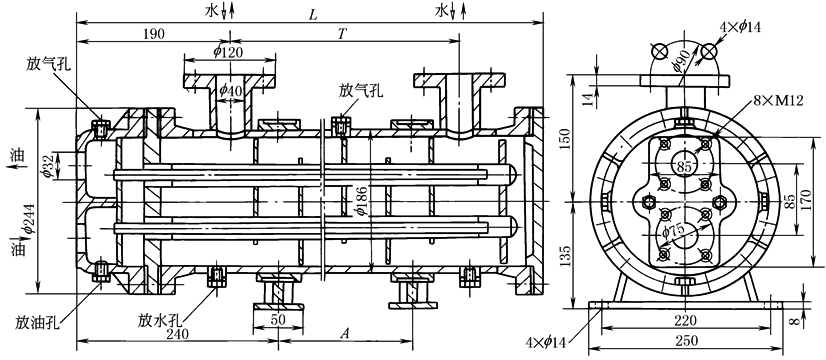

4LQF3W型冷却器尺寸
|
||||||||
|
型 号 |
换热面积 /m2 |
L |
T |
A |
质量/kg |
容积/L |
旧 型 号 |
|
|
/mm |
管内 |
管间 |
||||||
|
4LQF3W-A1.3F |
1.7 |
575 |
290 |
≤190 |
53 |
5.6 |
4.8 |
4LQF3W-A315F |
|
4LQF3W-A1.7F |
2.1 |
675 |
390 |
≤290 |
59 |
6.5 |
6 |
4LQF3W-A400F |
|
4LQF3W-A2.1F |
2.6 |
805 |
520 |
≤420 |
66 |
7.7 |
7.6 |
4LQF3W-A500F |
|
4LQF3W-A2.6F |
3.4 |
975 |
690 |
≤590 |
75 |
9.3 |
9.7 |
4LQF3W-A630F |
|
4LQF3W-A3.4F |
4.2 |
1175 |
890 |
≤790 |
86 |
11.1 |
12.1 |
4LQF3W-A800F |
|
4LQF3W-A4.2F |
5.3 |
1425 |
1140 |
≤1040 |
99 |
13.4 |
15.1 |
4LQF3W-A1000F |
|
4LQF3W-A5.3F |
1.7 |
575 |
290 |
≤190 |
53 |
5.6 |
4.8 |
4LQF3W-A1250F |
|
油流量 /L·min-1 |
热量H2/W |
油侧压力降 /MPa |
||||||
|
58 |
15002 |
18142 |
21515 |
24772 |
27912 |
31168 |
33727 |
≤0.1 |
|
66 |
17096 |
20934 |
24423 |
28377 |
31982 |
35472 |
38379 |
|
|
75 |
19190 |
23260 |
27563 |
31700 |
35820 |
40123 |
43496 |
|
|
83 |
20468 |
26051 |
29772 |
34308 |
38960 |
43612 |
48264 |
0.11~0.15 |
|
92 |
22446 |
28494 |
32564 |
36634 |
41868 |
47102 |
51754 |
|
|
100 |
24539 |
29075 |
34308 |
40124 |
45822 |
51172 |
56406 |
|
|
108 |
25353 |
31401 |
36053 |
42216 |
48264 |
54080 |
59895 |
|
|
116 |
27330 |
31982 |
38960 |
45357 |
50590 |
58150 |
64546 |
0.15~0.2 |
|
125 |
27912 |
33145 |
41868 |
47102 |
52916 |
61058 |
68036 |
|
|
132 |
28494 |
33727 |
42450 |
48846 |
56406 |
63965 |
70943 |
|
|
150 |
29656 |
36635 |
44776 |
53498 |
61639 |
69780 |
76758 |
0.2~0.3 |
|
166 |
31401 |
40705 |
47683 |
56987 |
66291 |
75595 |
84899 |
|
|
184 |
34890 |
41868 |
51172 |
58150 |
68617 |
80247 |
89551 |
|
|
200 |
37216 |
44194 |
53498 |
63965 |
75595 |
87225 |
97692 |
|
|
换热面积/m2 |
1.3 |
1.7 |
2.1 |
2.6 |
3.4 |
4.2 |
5.3 |
|
