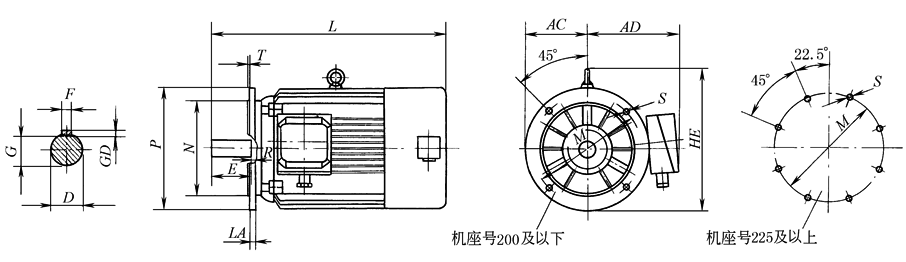

机座无底脚、端盖带凸缘(IMB5、IMV1、IMV3)外形及安装尺寸 mm |
|||||||||||||||
|
|
|||||||||||||||
|
机座号 |
安装尺寸 |
外形尺寸 |
|||||||||||||
|
D |
E |
F×GD |
G |
T |
M |
N |
P |
R |
S |
AC |
AD |
LA |
HE |
L |
|
|
90S |
24 |
50 |
8×7 |
20 |
3.5 |
165 |
130 |
200 |
0 |
4×f 12 |
88 |
155 |
12 |
195 |
400 |
|
90L |
24 |
50 |
8×7 |
20 |
3.5 |
165 |
130 |
200 |
0 |
4×f 12 |
88 |
155 |
12 |
195 |
430 |
|
100L |
28 |
60 |
8×7 |
24 |
4 |
215 |
180 |
250 |
0 |
4×f 15 |
103 |
180 |
14 |
265 |
465 |
|
112M |
28 |
60 |
8×7 |
24 |
4 |
215 |
180 |
250 |
0 |
4×f 15 |
115 |
190 |
14 |
265 |
490 |
|
132S |
38 |
80 |
10×8 |
33 |
4 |
265 |
230 |
300 |
0 |
4×f 15 |
135 |
210 |
14 |
315 |
525 |
|
132M |
38 |
80 |
10×8 |
33 |
4 |
265 |
230 |
300 |
0 |
4×f 15 |
135 |
210 |
14 |
315 |
575 |
|
160M |
42 |
110 |
12×8 |
37 |
5 |
300 |
250 |
350 |
0 |
4×f 19 |
163 |
255 |
16 |
385 |
645 |
|
160L |
42 |
110 |
12×8 |
37 |
5 |
300 |
250 |
350 |
0 |
4×f 19 |
163 |
255 |
16 |
385 |
690 |
|
180M |
48 |
110 |
14×9 |
42.5 |
5 |
300 |
250 |
350 |
0 |
4×f 19 |
180 |
285 |
18 |
430 |
810 |
|
180L |
48 |
110 |
14×9 |
42.5 |
5 |
300 |
250 |
350 |
0 |
4×f 19 |
180 |
285 |
18 |
430 |
850 |
|
200L |
55 |
110 |
16×10 |
49 |
5 |
350 |
300 |
400 |
0 |
4×f 19 |
200 |
310 |
18 |
480 |
890 |
|
225S |
60 |
140 |
18×11 |
53 |
5 |
400 |
350 |
450 |
0 |
8×f 19 |
225 |
345 |
20 |
535 |
930 |
|
225M |
60 |
140 |
18×11 |
53 |
5 |
400 |
350 |
450 |
0 |
8×f 19 |
225 |
345 |
20 |
535 |
970 |
|
250M |
65 |
140 |
18×11 |
58 |
5 |
500 |
450 |
550 |
0 |
8×f 19 |
248 |
385 |
22 |
620 |
1050 |
|
280S |
75 |
140 |
20×12 |
67.5 |
5 |
500 |
450 |
550 |
0 |
8×f 19 |
280 |
410 |
22 |
665 |
1100 |
|
280M |
75 |
140 |
20×12 |
67.5 |
5 |
500 |
450 |
550 |
0 |
8×f 19 |
280 |
410 |
22 |
665 |
1180 |
|
注：L为不带传感器、制动器等附件的尺寸。 |
|||||||||||||||
