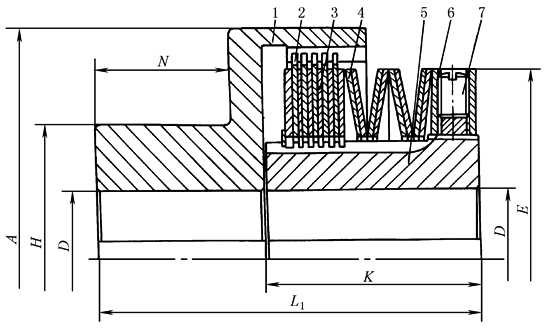

多盘安全离合器结构尺寸 mm |
|||||||
|
1—半离合器；2—外片；3—内片；4—碟簧；5—轴套；6—螺母；7—螺钉 |
|||||||
|
公称转矩 /N·m |
A |
D |
E |
H |
K |
L1 |
N |
|
24.5 39.2 61.8 |
70 |
10~20 |
58 |
60 |
40 |
90 |
45 |
|
39.2 61.8 98.1 |
90 |
12~25 |
75 |
80 |
55 |
125 |
60 |
|
61.8 98.1 157.0 |
100 |
14~35 |
90 |
90 |
55 |
125 |
60 |
|
98.2 157.0 245.3 |
125 |
17~45 |
110 |
110 |
60 |
140 |
70 |
|
157.0 245.3 392.0 |
135 |
17~45 |
110 |
110 |
65 |
150 |
75 |
|
245.3 392.0 618.0 |
150 |
22~55 |
120 |
125 |
75 |
180 |
95 |
|
392.0 618.0 981.0 |
170 |
28~65 |
155 |
140 |
85 |
200 |
100 |
|
618.0 981.0 |
195 |
33~70 |
165 |
150 |
95 |
220 |
110 |
|
981.0 1570 2453 |
210 |
38~60 |
180 |
170 |
110 |
260 |
135 |
