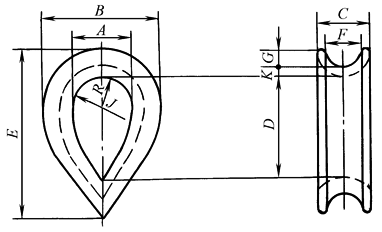

纤维索套环(CB/T 33—1999) |
|||||||||||||
|
|
材 料：Q255-A 标记示例： 纤维索直径为22mm的纤维索套环，标记为： 套环FT22 CB/T 33—1999 |
||||||||||||
|
mm |
|||||||||||||
|
型 号 |
纤维索 直 径 |
套环的许用载荷 /kN(tf) |
A |
B |
C |
D |
E |
F |
G |
J |
K |
R |
质量 /kg≈ |
|
FT6 |
6 |
0.78(0.08) |
11 |
21 |
8.4 |
18 |
30 |
6.6 |
3.0 |
8.4 |
2.0 |
4.8 |
0.014 |
|
FT8 |
7~8 |
1.37(0.14) |
14 |
26 |
11.0 |
24 |
40 |
8.8 |
4.0 |
11.0 |
2.0 |
6.4 |
0.033 |
|
FT10 |
9~10 |
2.06(0.21) |
18 |
32 |
14.0 |
30 |
50 |
11.0 |
4.5 |
14.0 |
2.5 |
8.0 |
0.056 |
|
FT12 |
11~12 |
2.94(0.30) |
22 |
39 |
17.0 |
36 |
60 |
13.0 |
5.5 |
17.0 |
3.0 |
9.6 |
0.089 |
|
FT14 |
13~14 |
3.92(0.40) |
25 |
45 |
20.0 |
42 |
70 |
15.0 |
6.5 |
20.0 |
3.5 |
11.2 |
0.129 |
|
FT16 |
16 |
4.90(0.50) |
29 |
51 |
22.0 |
48 |
80 |
18.0 |
7.0 |
22.0 |
4.0 |
12.8 |
0.172 |
|
FT18 |
18 |
6.37(0.65) |
32 |
57 |
25.0 |
54 |
90 |
20.0 |
8.0 |
25.0 |
4.5 |
14.4 |
0.251 |
|
FT20 |
20 |
7.84(0.80) |
36 |
64 |
28.0 |
60 |
100 |
22.0 |
9.0 |
28.0 |
5.0 |
16.0 |
0.345 |
|
FT22 |
22 |
9.80(1.00) |
40 |
71 |
31.0 |
66 |
110 |
24.0 |
10.0 |
31.0 |
5.5 |
18.0 |
0.497 |
|
FT25 |
24 |
11.76(1.20) |
45 |
79 |
35.0 |
75 |
125 |
28.0 |
11.0 |
35.0 |
6.0 |
20.0 |
0.725 |
|
FT28 |
26~28 |
14.70(1.50) |
50 |
90 |
39.0 |
84 |
140 |
31.0 |
13.0 |
39.0 |
7.0 |
23.0 |
1.080 |
|
FT32 |
30~32 |
18.62(1.90) |
58 |
102 |
45.0 |
96 |
160 |
35.0 |
14.0 |
45.0 |
8.0 |
26.0 |
1.560 |
|
FT36 |
34~36 |
24.50(2.50) |
65 |
115 |
50.0 |
108 |
180 |
40.0 |
16.0 |
50.0 |
9.0 |
29.0 |
2.150 |
|
FT40 |
38~40 |
31.36(3.20) |
72 |
128 |
56.0 |
120 |
200 |
44.0 |
18.0 |
56.0 |
10.0 |
32.0 |
3.250 |
|
FT45 |
44 |
38.22(3.90) |
81 |
143 |
63.0 |
135 |
225 |
50.0 |
20.0 |
63.0 |
11.0 |
36.0 |
4.320 |
|
FT50 |
48 |
47.04(4.80) |
90 |
159 |
70.0 |
150 |
250 |
55.0 |
22.0 |
70.0 |
12.5 |
40.0 |
5.750 |
|
FT56 |
52~56 |
58.80(6.00) |
101 |
179 |
78.0 |
168 |
280 |
62.0 |
25.0 |
78.0 |
14.0 |
45.0 |
8.100 |
|
FT63 |
60 |
73.50(7.50) |
113 |
201 |
88.0 |
189 |
315 |
69.0 |
28.0 |
88.0 |
16.0 |
51.0 |
11.240 |
|
FT70 |
64~68 |
88.20(9.00) |
126 |
225 |
98.0 |
210 |
350 |
77.0 |
32.0 |
98.0 |
17.5 |
56.0 |
14.950 |
|
FT80 |
72，76~80 |
107.80(11.00) |
144 |
256 |
112.0 |
240 |
400 |
88.0 |
36.0 |
112.0 |
20.0 |
64.0 |
20.820 |
|
FT90 |
88 |
137.20(14.00) |
162 |
287 |
126.0 |
270 |
450 |
99.0 |
40.0 |
126.0 |
22.5 |
72.0 |
30.210 |
|
FT100 |
96 |
176.40(18.00) |
180 |
320 |
140.0 |
300 |
500 |
110.0 |
45.0 |
140.0 |
25.0 |
80.0 |
46.310 |
