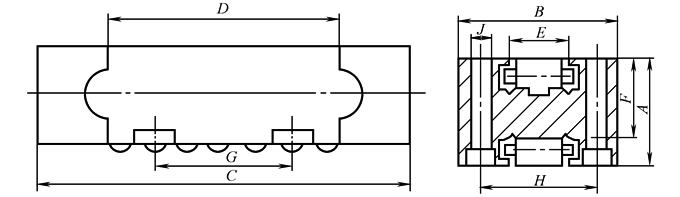

燕尾式滚动导轨块支承结构、基本尺寸 |
||||||||||||
|
|
||||||||||||
|
型号 |
主要尺寸/mm |
额定载荷/kN |
||||||||||
|
A |
B |
C |
D |
E |
F |
G±0.1 |
H±0.1 |
J |
动载荷 C |
静载荷 C0 |
||
|
T |
L |
|||||||||||
|
HJG-K2560B |
17 |
25 |
60 |
35 |
10 |
13 |
20 |
19.5 |
f 3.3 |
M4 |
26.6 |
38.6 |
|
HJG-K2764B |
19 |
27 |
64 |
39 |
10.3 |
14 |
25.5 |
20.5 |
f 3.3 |
M4 |
41.2 |
63.2 |
|
HJG-K3070B |
20 |
30 |
68.5 |
42.5 |
12.3 |
15 |
26 |
23 |
f 3.3 |
M4 |
53.5 |
72 |
|
HJG-K40100B |
26 |
40 |
101 |
62 |
13.5 |
19 |
44 |
30 |
f 5 |
M6 |
86.2 |
112 |
|
HJG-K40125B |
26 |
40 |
125.5 |
87.5 |
13.5 |
19 |
68 |
30 |
f 5 |
M6 |
116 |
151 |
|
HJG-K52140B |
38 |
52 |
139.65 |
92.5 |
19.8 |
29 |
51 |
41 |
f 7 |
|
120 |
160 |
|
HJG-K52203B |
38 |
52 |
202. |
155.5 |
19.8 |
29 |
102 |
41 |
f 6.8 |
M8 |
202 |
274 |
|
HJG-K76198B |
57.15 |
76.2 |
198 |
123.6 |
30.2 |
42 |
76.2 |
62 |
f 6.8 |
M8 |
300 |
400 |
|
HJG-K124333B |
100 |
124 |
333 |
212 |
60.3 |
73 |
120 |
102.5 |
f 11 |
|
800 |
1000 |
