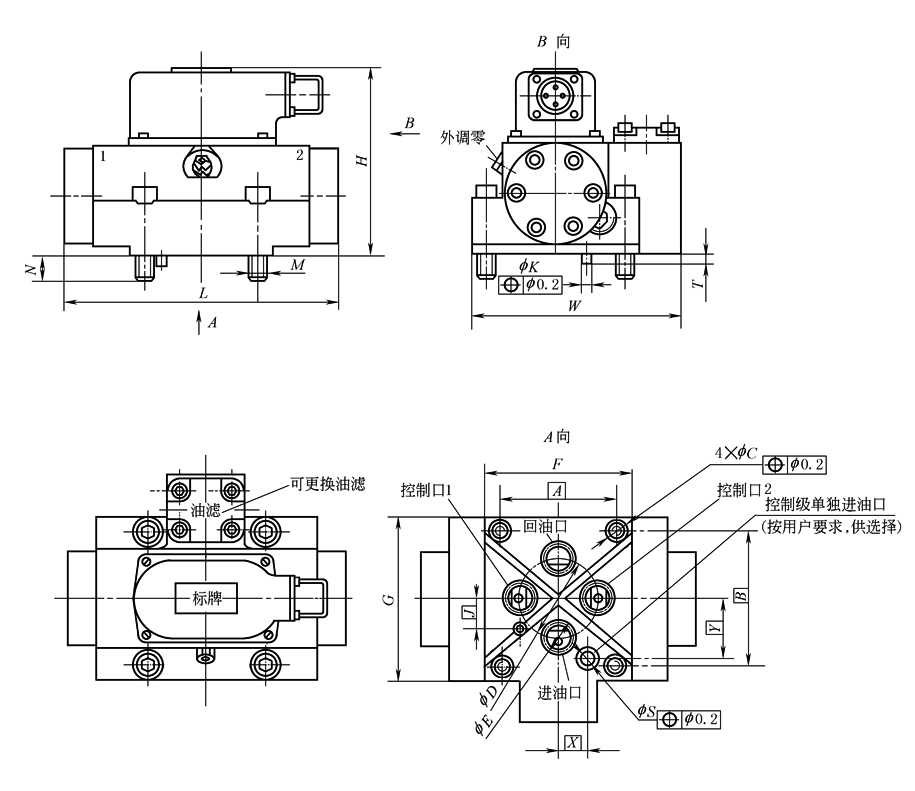

FF113、YFW10和MOOG72型电液伺服阀外形及安装尺寸 mm |
||||||||||
|
|
||||||||||
|
型号 |
A |
B |
C |
D |
E |
F |
G |
H |
J |
备注 |
|
FF113 |
73 |
86 |
10.5 |
50.8 |
15.8 |
92 |
104 |
116 |
19 |
|
|
YFW10 |
73 |
86 |
10.5 |
50.8 |
16 |
94 |
104 |
116 |
19 |
|
|
MOOG72 |
72.3 |
85.7 |
10.3 |
50.8 |
18.9 |
90.4 |
103.1 |
114.3 |
19.1 |
|
|
型号 |
K |
L |
M |
N |
T |
X |
Y |
W |
S |
备注 |
|
FF113 |
6 |
175 |
M10 |
15 |
7 |
19 |
38 |
130 |
12.7 |
|
|
YFW10 |
6 |
175 |
M10 |
|
6 |
19 |
36 |
130 |
|
|
|
MOOG72 |
6.3 |
170.7 |
M10 |
|
7.1 |
19.1 |
38.1 |
129 |
12.7 |
|
