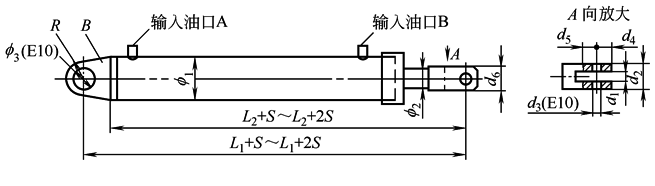

DYT(B)-F型分离式耳环系列外形安装尺寸 |
||||||||||||||
|
mm |
||||||||||||||
|
型 号 |
L1 |
L2 |
f 1 |
f 2 |
f 3 |
R |
B |
d1 |
d2 |
d3 |
d4 |
d5 |
d6 |
推力Ft范围/N |
|
DYT□-□F2500-4500 |
305 |
255 |
f 65 |
f 28 |
f 25 |
25 |
20 |
20 |
44 |
f 16 |
20 |
45 |
44 |
0≤Ft＜4500 |
|
DYT□-□F4500-7000 |
305 |
255 |
f 65 |
f 28 |
f 30 |
30 |
25 |
20 |
44 |
f 16 |
20 |
45 |
44 |
4500≤Ft＜7000 |
|
DYT□-□F7000-14000 |
333 |
283 |
f 76 |
f 35 |
f 30 |
30 |
25 |
20 |
44 |
f 20 |
20 |
50 |
44 |
7000≤Ft＜14000 |
|
DYT□-□F14000-21000 |
374 |
314 |
f 95 |
f 45 |
f 35 |
35 |
30 |
25 |
57 |
f 25 |
25 |
53 |
55 |
14000≤Ft≤21000 |
|
DYT□-□F21000-27000 |
374 |
314 |
f 95 |
f 45 |
f 35 |
35 |
30 |
25 |
57 |
f 25 |
25 |
53 |
55 |
21000＜Ft＜27000 |
|
DYT□-□F27000-40000 |
374 |
314 |
f 95 |
f 45 |
f 35 |
35 |
30 |
25 |
57 |
f 25 |
25 |
53 |
55 |
27000≤Ft＜40000 |
|
DYT□-□F40000-60000 |
437 |
367 |
f 121 |
f 55 |
f 40 |
40 |
30 |
38 |
70 |
f 35 |
35 |
70 |
70 |
40000≤Ft＜60000 |
|
DYT□-□F60000-80000 |
484 |
404 |
f 146 |
f 70 |
f 50 |
50 |
40 |
42 |
82 |
f 40 |
40 |
70 |
80 |
60000≤Ft≤80000 |
|
DYT□-□F80000-120000 |
524 |
444 |
f 161 |
f 80 |
f 55 |
55 |
50 |
52 |
102 |
f 45 |
45 |
80 |
90 |
80000＜Ft≤120000 |
|
DYT□-□F120000-150000 |
572 |
472 |
f 184 |
f 80 |
f 60 |
60 |
60 |
50 |
110 |
f 50 |
50 |
90 |
100 |
120000＜Ft≤150000 |
|
DYT□-□F150000-200000 |
626 |
536 |
f 203 |
f 90 |
f 60 |
60 |
70 |
60 |
120 |
f 60 |
60 |
100 |
120 |
150000＜Ft≤200000 |
|
DYT□-□F200000-250000 |
675 |
585 |
f 240 |
f 100 |
f 70 |
70 |
70 |
70 |
140 |
f 70 |
65 |
110 |
140 |
200000＜Ft≤250000 |
