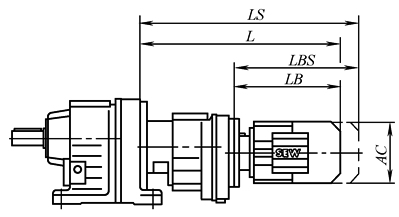

R..R增大速比型外形、安装尺寸 |
|||||||||||||
|
mm |
|||||||||||||
|
减速器 |
电动机 |
AC |
L |
LS |
LB |
LBS |
减速器 |
电动机 |
AC |
L |
LS |
LB |
LBS |
|
R..27R17 R..37R17 |
DR63.. |
132 |
324 |
379 |
149 |
204 |
R..147R77 |
DR63.. |
132 |
411 |
466 |
179 |
234 |
|
DT71D |
145 |
339 |
403 |
164 |
228 |
DT71D |
145 |
425 |
489 |
193 |
257 |
||
|
DT80.. |
145 |
389 |
453 |
214 |
278 |
DT80.. |
145 |
475 |
539 |
243 |
307 |
||
|
R..47R37 R..57R37 R..67R37 |
DR63.. |
132 |
356 |
411 |
191 |
246 |
DT90.. |
197 |
493 |
578 |
261 |
346 |
|
|
DT71D |
145 |
371 |
435 |
206 |
270 |
DV100M |
197 |
543 |
628 |
311 |
396 |
||
|
DT80.. |
145 |
421 |
485 |
256 |
320 |
DV100L |
197 |
573 |
658 |
341 |
426 |
||
|
R..77R37 |
DR63.. |
132 |
348 |
403 |
191 |
246 |
DV112M |
221 |
577 |
657 |
345 |
425 |
|
|
DT71D |
145 |
363 |
427 |
206 |
270 |
DV132S |
221 |
622 |
702 |
390 |
470 |
||
|
DT80.. |
145 |
413 |
477 |
256 |
320 |
DV132M |
275 |
644 |
756 |
412 |
524 |
||
|
DT90.. |
197 |
433 |
518 |
276 |
261 |
DV132ML |
275 |
704 |
816 |
472 |
584 |
||
|
R..87R57 |
DR63.. |
132 |
401 |
456 |
185 |
240 |
DV160M |
275 |
704 |
816 |
472 |
584 |
|
|
DT71D |
145 |
415 |
479 |
199 |
263 |
R..147R87 |
DT90.. |
197 |
537 |
622 |
257 |
342 |
|
|
DT80.. |
145 |
465 |
529 |
249 |
313 |
DV100M |
197 |
587 |
672 |
307 |
392 |
||
|
DT90.. |
197 |
485 |
570 |
269 |
354 |
DV100L |
197 |
617 |
702 |
337 |
422 |
||
|
R..97R57 |
DR63.. |
132 |
396 |
451 |
185 |
240 |
DV112M |
221 |
620 |
700 |
340 |
420 |
|
|
DT71D |
145 |
410 |
474 |
199 |
263 |
DV132S |
221 |
665 |
745 |
385 |
465 |
||
|
DT80.. |
145 |
460 |
524 |
249 |
313 |
DV132M |
275 |
687 |
799 |
407 |
519 |
||
|
DT90.. |
197 |
480 |
565 |
269 |
354 |
DV132ML |
275 |
747 |
859 |
467 |
579 |
||
|
DV100M |
197 |
530 |
615 |
319 |
404 |
DV160M |
275 |
747 |
859 |
467 |
579 |
||
|
DV100L |
197 |
560 |
645 |
349 |
434 |
DV160L |
331 |
794 |
950 |
514 |
670 |
||
|
R..107R77 |
DR63.. |
132 |
426 |
481 |
179 |
234 |
DV180.. |
331 |
866 |
1022 |
586 |
742 |
|
|
DT71D |
145 |
440 |
504 |
193 |
257 |
R..167R97 |
DT80.. |
145 |
556 |
620 |
231 |
295 |
|
|
DT80.. |
145 |
490 |
554 |
243 |
307 |
DT90.. |
197 |
576 |
661 |
251 |
336 |
||
|
DT90.. |
197 |
508 |
593 |
261 |
346 |
DV100M |
197 |
626 |
711 |
301 |
386 |
||
|
DV100M |
197 |
558 |
643 |
311 |
396 |
DV100L |
197 |
656 |
741 |
331 |
416 |
||
|
DV100L |
197 |
588 |
673 |
341 |
426 |
DV112M |
221 |
660 |
740 |
335 |
415 |
||
|
DV112M |
221 |
592 |
672 |
345 |
425 |
DV132S |
221 |
705 |
785 |
380 |
460 |
||
|
DV132S |
221 |
637 |
717 |
390 |
470 |
DV132M |
275 |
727 |
839 |
402 |
514 |
||
|
DV132M |
275 |
659 |
771 |
412 |
524 |
DV132ML |
275 |
787 |
899 |
462 |
574 |
||
|
DV132ML |
275 |
719 |
831 |
472 |
584 |
DV160M |
275 |
787 |
899 |
462 |
574 |
||
|
DV160M |
275 |
719 |
831 |
472 |
584 |
DV160L |
331 |
834 |
990 |
509 |
665 |
||
|
R..137R77 |
DR63.. |
132 |
419 |
474 |
179 |
234 |
DV180.. |
331 |
906 |
1062 |
581 |
737 |
|
|
DT71D |
145 |
433 |
497 |
193 |
257 |
R..167R107 |
DV100M |
197 |
677 |
762 |
295 |
380 |
|
|
DT80.. |
145 |
483 |
547 |
243 |
307 |
DV100L |
197 |
707 |
792 |
325 |
410 |
||
|
DT90.. |
197 |
501 |
586 |
261 |
346 |
DV112M |
221 |
711 |
791 |
329 |
409 |
||
|
DV100M |
197 |
551 |
636 |
311 |
396 |
DV132S |
221 |
756 |
836 |
374 |
454 |
||
|
DV100L |
197 |
581 |
666 |
341 |
426 |
DV132M |
275 |
778 |
890 |
396 |
508 |
||
|
DV112M |
221 |
585 |
665 |
345 |
425 |
DV132ML |
275 |
838 |
950 |
456 |
568 |
||
|
DV132S |
221 |
630 |
710 |
390 |
470 |
DV160M |
275 |
838 |
950 |
456 |
568 |
||
|
DV132M |
275 |
652 |
764 |
412 |
524 |
DV160L |
331 |
885 |
1041 |
503 |
659 |
||
|
DV132ML |
275 |
712 |
824 |
472 |
584 |
DV180.. |
331 |
957 |
1113 |
575 |
731 |
||
|
DV160M |
275 |
712 |
824 |
472 |
584 |
DV200.. |
394 |
1005 |
1161 |
623 |
779 |
||
|
DV225.. |
394 |
1087 |
1243 |
705 |
861 |
||||||||
