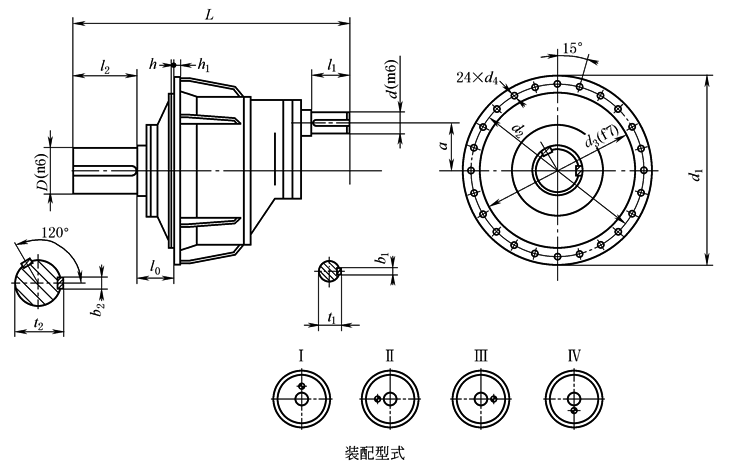

一级减速器外形及安装尺寸(NAZF 200~560) |
||||||||||||||||||||
|
mm |
||||||||||||||||||||
|
规格 代号 |
型号 规格 |
公称 传动比 |
外形尺寸 |
轴 伸 |
法兰尺寸 |
质量 /kg |
油量 /L |
|||||||||||||
|
L |
d1 |
a |
d |
D |
l1 |
l2 |
t1 |
b1 |
t2 |
b2 |
d2 |
d3 |
d4 |
l0 |
h/h1 |
|||||
|
1 |
NAZF 200 |
10~18 |
520 |
325 |
82 |
30 |
60 |
58 |
105 |
34 |
8 |
64 |
18 |
300 |
275 |
13.5 |
70 |
6/15 |
95 |
3 |
|
2 |
NAZF 224 |
10~18 |
580 |
365 |
91 |
32 |
70 |
58 |
105 |
35 |
10 |
74.5 |
20 |
335 |
300 |
13.5 |
76 |
6/17 |
125 |
4 |
|
3 |
NAZF 250 |
10~18 |
650 |
410 |
100 |
38 |
80 |
58 |
130 |
41 |
10 |
85 |
22 |
375 |
340 |
17.5 |
85 |
6/20 |
160 |
6 |
|
4 |
NAZF 280 |
10~18 |
720 |
460 |
109 |
42 |
100 |
82 |
165 |
45 |
12 |
106 |
28 |
420 |
385 |
17.5 |
95 |
8/18 |
225 |
8 |
|
5 |
NAZF 315 |
10~18 |
760 |
520 |
127 |
50 |
120 |
82 |
165 |
53.5 |
14 |
127 |
32 |
470 |
435 |
17.5 |
113 |
12/20 |
290 |
10 |
|
6 |
NAZF 355 |
10~18 |
840 |
585 |
145 |
55 |
140 |
82 |
200 |
59 |
16 |
148 |
36 |
525 |
485 |
22 |
120 |
8/20 |
385 |
14 |
|
7 |
NAZF 400 |
10~18 |
923 |
650 |
164 |
60 |
150 |
105 |
200 |
64 |
18 |
158 |
36 |
590 |
545 |
22 |
125 |
8/25 |
494 |
20 |
|
8 |
NAZF 450 |
10~18 |
1015 |
740 |
182 |
70 |
170 |
105 |
240 |
74.5 |
20 |
179 |
40 |
670 |
615 |
26 |
138 |
8/27 |
730 |
24 |
|
9 |
NAZF 500 |
10~18 |
1147 |
820 |
200 |
80 |
200 |
130 |
280 |
85 |
22 |
210 |
45 |
755 |
680 |
26 |
160 |
8/30 |
1053 |
32 |
|
10 |
NAZF 560 |
10~18 |
1220 |
940 |
218 |
85 |
220 |
130 |
280 |
90 |
22 |
231 |
50 |
860 |
785 |
33 |
173.5 |
10/45 |
1326 |
42 |
