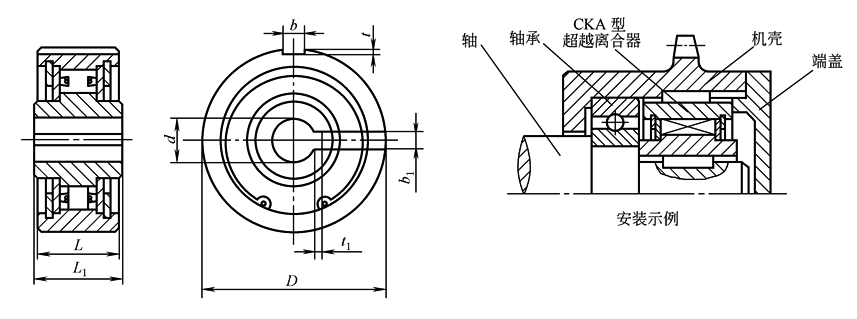

CKA型(基本型)单向楔块超越离合器(JB/T 9130—2002) mm |
|||||||||
|
使用时可根据需要安装轴承以承受轴向与径向载荷。常用于各种轻工机械、机床和减速器等机械振动。
|
|||||||||
|
型号 |
公称转矩 Tn/N·m |
超越时的 极限转速 n/r·min-1 |
外环 |
内环 |
质量m /kg |
||||
|
D (h7) |
键槽 (b×t) |
L |
d (H7) |
键槽 (b1×t1) |
L1 |
||||
|
CKA50×24-10 |
31.5 |
2500 |
50 |
3×1.8 |
22 |
10 |
3×1.4 |
24 |
0.24 |
|
CKA50×24-12 |
31.5 |
2500 |
50 |
3×1.8 |
22 |
12 |
3×1.4 |
24 |
0.24 |
|
CKA55×24-18 |
50 |
2250 |
55 |
4×2.5 |
22 |
18 |
4×1.8 |
24 |
0.28 |
|
CKA60×22-19 |
63 |
2000 |
60 |
6×3.5 |
22 |
19 |
6×2.8 |
22 |
0.30 |
|
CKA60×24-20 |
63 |
2000 |
60 |
6×3.5 |
22 |
20 |
6×2.8 |
24 |
0.33 |
|
CKA63×26-25 |
100 |
1800 |
63 |
6×3.5 |
24 |
25 |
6×2.8 |
26 |
0.37 |
|
CKA63×32-25 |
140 |
1800 |
63 |
6×3.5 |
30 |
25 |
6×2.8 |
32 |
0.48 |
|
CKA65×26-24 |
100 |
1800 |
65 |
6×3.5 |
24 |
24 |
6×2.8 |
26 |
0.38 |
|
CKA70×32-12 |
150 |
1500 |
70 |
8×4.0 |
30 |
12 |
3×1.4 |
32 |
0.67 |
|
CKA70×32-25 |
150 |
1500 |
70 |
8×4.0 |
30 |
25 |
8×3.3 |
32 |
0.63 |
|
CKA70×32-28 |
180 |
1500 |
70 |
8×4.0 |
30 |
28 |
8×3.3 |
32 |
0.60 |
|
CKA72×27-25 |
180 |
1500 |
72 |
6×3.5 L＝14 |
20 |
25 |
8×3.3 |
27 |
0.54 |
|
CKA75×40-25 |
180 |
1500 |
75 |
8×4.0 |
30 |
25 |
8×3.3 |
40 |
0.79 |
|
CKA80×32-25 |
200 |
1500 |
80 |
8×4.0 |
32 |
25 |
8×3.3 |
32 |
0.90 |
|
CKA80×26-30 |
200 |
1500 |
80 |
8×4.0 |
26 |
30 |
8×3.3 |
26 |
0.73 |
|
CKA80×32-30 |
200 |
1500 |
80 |
8×4.0 |
30 |
30 |
8×3.3 |
32 |
0.87 |
|
CKA80×31-35 |
200 |
1500 |
80 |
12×4 |
31 |
35 |
10×2.5 |
31 |
0.75 |
|
CKA85×28-30 |
200 |
1500 |
85 |
5×3.0 L＝14 |
20 |
30 |
8×3.3 |
28 |
0.83 |
|
CKA90×37-25 |
200 |
1500 |
90 |
8×4.0 |
37 |
25 |
8×3.3 |
37 |
1.00 |
|
CKA100×34-35 |
315 |
1250 |
100 |
10×5 |
32 |
35 |
10×3.3 |
34 |
1.34 |
|
CKA100×34-40 |
315 |
1250 |
100 |
10×5 L＝28 |
32 |
40 |
10×3.3 |
34 |
1.20 |
|
CKA100×67-40 |
315 |
1250 |
100 |
8×4.0 L＝20 |
25 |
40 |
10×3.6 |
67 |
1.46 |
|
CKA105×35-30 |
315 |
1250 |
105 |
10×5 L＝16 |
20 |
30 |
8×3.3 |
35 |
1.55 |
|
CKA105×35-35 |
315 |
1250 |
105 |
6×3.5 |
25 |
35 |
8×3.3 |
35 |
1.56 |
|
CKA110×34-35 |
400 |
1000 |
110 |
10×5 |
32 |
35 |
10×3.3 |
34 |
1.82 |
|
CKA110×34-38 |
400 |
1000 |
110 |
10×5 |
32 |
38 |
10×3.3 |
34 |
1.67 |
|
CKA125×38-50 |
500 |
800 |
125 |
14×5.5 |
36 |
50 |
14×3.8 |
38 |
2.21 |
|
CKA130×55-40 |
500 |
800 |
130 |
8×4.0 |
35 |
40 |
12×3.3 |
55 |
2.62 |
|
CKA130×38-45 |
500 |
800 |
130 |
14×5.5 |
36 |
45 |
14×3.8 |
38 |
4.31 |
|
CKA130×38-50 |
500 |
800 |
130 |
14×5.5 |
36 |
50 |
14×3.8 |
38 |
3.02 |
|
CKA135×38-60 |
600 |
800 |
135 |
14×5.5 |
36 |
60 |
18×4.4 |
38 |
2.65 |
|
CKA136×52-45 |
800 |
800 |
136 |
6-M8 |
52 |
45 |
14×3.8 |
52 |
4.32 |
|
CKA140×55-50 |
1250 |
800 |
140 |
16×6.0 |
53 |
50 |
16×4.3 |
55 |
5.10 |
|
CKA140×38-60 |
1000 |
800 |
140 |
14×5.5 |
36 |
60 |
14×3.0 |
38 |
2.74 |
|
CKA145×34-45 |
1000 |
800 |
145 |
6-M10 |
34 |
45 |
12×3.8 |
34 |
3.35 |
|
CKA160×75-50 |
1500 |
800 |
160 |
6-M8 |
72 |
50 |
14×3.8 |
75 |
7.08 |
|
CKA160×55-55 |
2000 |
800 |
160 |
18×7.0 |
53 |
55 |
16×4.3 |
55 |
6.96 |
|
CKA160×35-70 |
1500 |
800 |
160 |
10×5.0 |
35 |
70 |
8×3.3 |
35 |
3.46 |
|
CKA170×55-60 |
2240 |
800 |
170 |
18×7.0 |
52 |
60 |
18×4.4 |
55 |
7.80 |
|
CKA170×55-65 |
2240 |
800 |
170 |
18×7.0 |
52 |
65 |
18×4.4 |
55 |
7.61 |
|
CKA180×55-65 |
2500 |
800 |
180 |
18×7.0 |
52 |
65 |
18×4.4 |
55 |
8.69 |
|
CKA190×38-85 |
2500 |
800 |
190 |
14×5.0 |
36 |
85 |
14×3.8 |
38 |
5.50 |
|
CKA200×55-65 |
2800 |
800 |
200 |
20×7.5 |
53 |
65 |
20×3.9 |
55 |
11.02 |
|
CKA210×85-75 |
4000 |
800 |
210 |
6-Φ13 |
70 |
75 |
20×4.9 |
70 |
14.25 |
|
CKA215×70-75 |
4500 |
600 |
215 |
6-M12 |
70 |
75 |
20×4.4 |
70 |
15.00 |
|
注：生产厂家为北京新兴超越离合器有限公司。 |
|||||||||
