CHB水润滑橡胶轴承系列 |
||||||
|

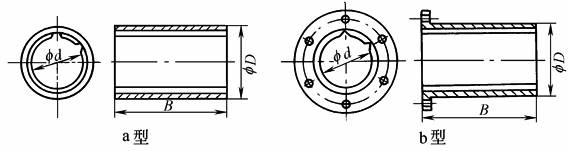

型号说明：
mm |
||||||
|
型号 |
内径 d |
外径 Ｄ |
宽度B＝d×n |
|||
|
d×1.5 |
d×2 |
d×3 |
d×4 |
|||
|
CHB1210-50 |
50 |
70 |
75 |
100 |
150 |
200 |
|
CHB1210-55 |
55 |
80 |
82 |
110 |
165 |
220 |
|
CHB1210-60 |
60 |
85 |
90 |
120 |
180 |
240 |
|
CHB1210-65 |
65 |
90 |
98 |
130 |
195 |
260 |
|
CHB1210-70 |
70 |
95 |
105 |
140 |
210 |
280 |
|
CHB1210-75 |
75 |
100 |
112 |
150 |
225 |
300 |
|
CHB1210-80 |
80 |
110 |
120 |
160 |
240 |
320 |
|
CHB1210-85 |
85 |
115 |
128 |
170 |
255 |
340 |
|
CHB1210-90 |
90 |
120 |
135 |
180 |
270 |
360 |
|
CHB1210-95 |
95 |
125 |
142 |
190 |
285 |
380 |
|
CHB1210-100 |
100 |
135 |
150 |
200 |
300 |
400 |
|
CHB1210-105 |
105 |
140 |
158 |
210 |
315 |
420 |
|
CHB1210-110 |
110 |
145 |
165 |
220 |
330 |
440 |
|
CHB1210-115 |
115 |
150 |
172 |
230 |
345 |
460 |
|
CHB1210-120 |
120 |
155 |
180 |
240 |
360 |
480 |
|
CHB1210-125 |
125 |
160 |
188 |
250 |
375 |
500 |
|
CHB1210-130 |
130 |
165 |
195 |
260 |
390 |
520 |
|
CHB1210-135 |
135 |
175 |
202 |
270 |
405 |
540 |
|
CHB1210-140 |
140 |
180 |
210 |
280 |
420 |
560 |
|
CHB1210-145 |
145 |
185 |
218 |
290 |
435 |
580 |
|
CHB1210-150 |
150 |
195 |
225 |
300 |
450 |
600 |
|
CHB1210-160 |
160 |
205 |
240 |
320 |
480 |
640 |
|
CHB1210-170 |
170 |
215 |
255 |
340 |
510 |
680 |
|
CHB1210-180 |
180 |
230 |
270 |
360 |
540 |
720 |
|
CHB1210-190 |
190 |
240 |
285 |
380 |
570 |
760 |
|
CHB1210-200 |
200 |
250 |
300 |
400 |
600 |
800 |
|
CHB1210-210 |
210 |
270 |
315 |
420 |
630 |
840 |
|
CHB1210-220 |
220 |
280 |
330 |
440 |
660 |
880 |
|
CHB1210-230 |
230 |
290 |
345 |
460 |
690 |
920 |
|
CHB1210-240 |
240 |
300 |
360 |
480 |
720 |
960 |
|
CHB1210-250 |
250 |
310 |
375 |
500 |
750 |
1000 |
|
CHB1210-260 |
260 |
325 |
390 |
520 |
780 |
1040 |
|
CHB1210-270 |
270 |
335 |
405 |
540 |
810 |
1080 |
|
CHB1210-280 |
280 |
345 |
420 |
560 |
840 |
1120 |
|
CHB1210-290 |
290 |
355 |
435 |
580 |
870 |
1160 |
|
CHB1210-300 |
300 |
370 |
450 |
600 |
900 |
1200 |
|
注：1．b型仅有d＝150～300mm的型号。 2．本系列轴承以过渡配合装入轴承座内，一般用螺钉加以固定。 |
||||||
