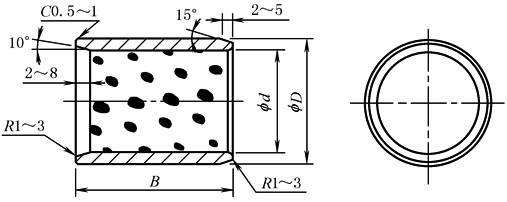

JHG镶嵌轴承尺寸 mm |
|||||||||||||||||||||||
|
|
|||||||||||||||||||||||
|
轴承 |
推荐轴颈及轴承座孔 |
|
|||||||||||||||||||||
|
内径 d(F7) |
外径 D |
轴颈 直径 |
座孔 直径(H7) |
10 JHG |
12 JHG |
15 JHG |
16 JHG |
20 JHG |
25 JHG |
30 JHG |
35 JHG |
40 JHG |
50 JHG |
60 JHG |
70 JHG |
80 JHG |
100 JHG |
120 JHG |
130 JHG |
140 JHG |
150 JHG |
||
|
12 |
+0.034 +0.016 |
18 |
12 |
18 |
+0.018 0 |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
19 |
13 |
19 |
+0.021 0 |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
20 |
14 |
20 |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
15 |
21 |
15 |
21 |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
16 |
22 |
16 |
22 |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
|
||
|
18 |
24 |
18 |
24 |
|
|
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
|
||
|
20 |
+0.041 +0.020 |
28 |
20 |
28 |
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
|
20 |
30 |
20 |
30 |
|
|
|
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
||
|
25 |
33 |
25 |
33 |
+0.025 0 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
|
25 |
35 |
25 |
35 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
||
|
30 |
38 |
30 |
38 |
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
||
|
30 |
40 |
30 |
40 |
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
||
|
35 |
+0.050 +0.025 |
44 |
35 |
44 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
35 |
45 |
35 |
45 |
|
|
|
|
|
● |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
||
|
40 |
50 |
40 |
50 |
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
||
|
40 |
55 |
40 |
55 |
+0.030 0 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
45 |
56 |
45 |
56 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
||
|
45 |
60 |
45 |
60 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
||
|
50 |
60 |
50 |
60 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
||
|
50 |
62 |
50 |
62 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
||
|
50 |
65 |
50 |
65 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
||
|
55 |
+0.060 +0.030 |
70 |
55 |
70 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
|
|
60 |
74 |
60 |
74 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
||
|
60 |
75 |
60 |
75 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
||
|
63 |
75 |
63 |
75 |
|
|
|
|
|
|
|
|
|
● |
● |
● |
● |
|
|
|
|
|
||
|
65 |
80 |
65 |
80 |
|
|
|
|
|
|
|
|
|
● |
● |
● |
|
|
|
|
|
|
||
|
65 |
85 |
65 |
85 |
+0.035 0 |
|
|
|
|
|
|
|
|
|
● |
● |
● |
● |
|
|
|
|
|
|
|
70 |
85 |
70 |
85 |
|
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
||
|
70 |
90 |
70 |
90 |
|
|
|
|
|
|
|
|
|
● |
● |
● |
● |
|
|
|
|
|
||
|
75 |
90 |
75 |
95 |
|
|
|
|
|
|
|
|
|
|
● |
● |
● |
|
|
|
|
|
||
|
75 |
95 |
75 |
95 |
|
|
|
|
|
|
|
|
|
|
● |
● |
● |
|
|
|
|
|
||
|
80 |
96 |
80 |
96 |
|
|
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
||
|
80 |
100 |
80 |
100 |
|
|
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
● |
|
|
|
||
|
90 |
+0.071 +0.036 |
110 |
90 |
110 |
|
|
|
|
|
|
|
|
|
|
● |
|
● |
● |
● |
|
|
|
|
|
100 |
120 |
100 |
120 |
|
|
|
|
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
● |
|
||
|
110 |
130 |
110 |
130 |
+0.040 0 |
|
|
|
|
|
|
|
|
|
|
|
|
● |
● |
● |
|
|
|
|
|
120 |
140 |
120 |
140 |
|
|
|
|
|
|
|
|
|
|
|
|
● |
● |
● |
|
● |
|
||
|
125 |
+0.083 +0.043 |
145 |
125 |
145 |
|
|
|
|
|
|
|
|
|
|
|
|
|
● |
● |
|
|
|
|
|
130 |
150 |
130 |
150 |
|
|
|
|
|
|
|
|
|
|
|
|
|
● |
|
● |
|
|
||
|
140 |
160 |
140 |
160 |
|
|
|
|
|
|
|
|
|
|
|
|
|
● |
|
|
|
|
||
|
150 |
170 |
150 |
170 |
|
|
|
|
|
|
|
|
|
|
|
|
|
● |
|
|
● |
|
||
|
160 |
180 |
160 |
180 |
|
|
|
|
|
|
|
|
|
|
|
|
|
● |
|
|
● |
● |
||
|
注：1.轴颈、轴承外径的推荐公差为，对于重载荷，轴颈d8，外径p7；对于轻载荷，轴颈e7，外径m6；对于精密配合，轴颈f7，外径m6。 2．未列出的规格尺寸，可按用户要求定制。 3．JHG固体镶嵌除轴套制品外，还可制成减磨止推垫圈、翻边轴套、内外球型轴承、滑板、导轨板等。可与生产厂家联系。 |
|||||||||||||||||||||||
