试验尺寸 m＝0.75mm 单位：mm |
|||||||||
|
|
|||||||||
|
基准 直径 |
齿数 |

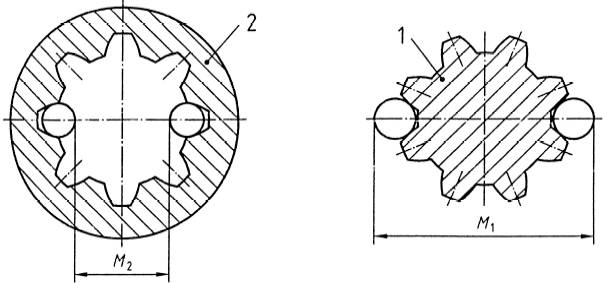

内花键量距 |
外花键量距 |
||||||
|
量规 直径 |
棒间距 |
棒间距 偏差 |
量规 直径 |
跨棒距 |
跨棒距 偏差 |
测量 系数 |
|
||
|
dB |
z |
DM |
M2 |
A*M2 |
DM |
M1 |
A*M1 |
k |
Wk |
|
6 |
6 |
1.5 |
2.673 |
2.42 |
2.75 |
10.087 |
1.02 |
2 |
3.608 |
|
7 |
8 |
1.25 |
4.438 |
2.13 |
1.75 |
9.072 |
1.23 |
2 |
3.428 |
|
8 |
9 |
1.25 |
5.363 |
1.73 |
1.75 |
9.894 |
1.21 |
2 a |
3.588 |
|
9 |
10 |
1.5 |
5.695 |
2.01 |
2.0 |
11.564 |
1.18 |
3 a |
5.788 |
|
10 |
12 |
1.25 |
7.449 |
1.95 |
1.5 |
11.497 |
1.38 |
3 |
5.608 |
|
11 |
13 |
1.25 |
8.395 |
1.74 |
1.5 |
12.374 |
1.35 |
3 |
5.768 |
|
12 |
14 |
1.5 |
8.702 |
1.91 |
1.75 |
14.037 |
1.29 |
3 a |
5.928 |
|
13 |
16 |
1.25 |
10.454 |
1.88 |
1.5 |
14.522 |
1.44 |
3 |
5.747 |
|
14 |
17 |
1.25 |
11.411 |
1.74 |
1.5 |
15.424 |
1.41 |
4 |
7.948 |
|
15 |
18 |
1.25 |
12.461 |
1.66 |
1.5 |
16.442 |
1.39 |
4 |
8.108 |
|
16 |
20 |
1.25 |
13.457 |
1.85 |
1.5 |
17.539 |
1.48 |
4 |
7.928 |
|
17 |
21 |
1.25 |
14.421 |
1.74 |
1.5 |
18.457 |
1.45 |
4 a |
8.088 |
|
18 |
22 |
1.5 |
14.707 |
1.84 |
1.5 |
19.467 |
1.43 |
5 |
10.288 |
|
19 |
24 |
1.25 |
16.458 |
1.83 |
1.5 |
20.552 |
1.51 |
5 |
10.108 |
|
20 |
25 |
1.25 |
17.428 |
1.74 |
1.5 |
21.481 |
1.48 |
5 |
10.268 |
|
21 |
26 |
1.50 |
17.709 |
1.82 |
1.5 |
22.486 |
1.46 |
5 a |
10.428 |
|
22 |
28 |
1.25 |
19.459 |
1.81 |
1.5 |
23.561 |
1.53 |
5 a |
10.247 |
|
23 |
29 |
1.25 |
20.434 |
1.74 |
1.5 |
24.499 |
1.50 |
6 |
12.448 |
|
24 |
30 |
1.25 |
21.463 |
1.69 |
1.5 |
25.501 |
1.48 |
6 |
12.608 |
|
25 |
32 |
1.25 |
22.460 |
1.80 |
1.5 |
26.569 |
1.55 |
6 |
12.428 |
|
26 |
33 |
1.25 |
23.437 |
1.74 |
1.5 |
27.513 |
1.52 |
6 a |
12.588 |
|
27 |
34 |
1.25 |
24.463 |
1.69 |
1.5 |
28.514 |
1.50 |
7 |
14.788 |
|
28 |
36 |
1.25 |
25.461 |
1.79 |
1.5 |
29.575 |
1.56 |
7 |
14.608 |
|
29 |
37 |
1.25 |
26.440 |
1.74 |
1.5 |
30.524 |
1.54 |
7 |
14.768 |
|
30 |
38 |
1.25 |
27.463 |
1.69 |
1.5 |
31.524 |
1.52 |
7 a |
14.928 |
|
31 |
40 |
1.25 |
28.461 |
1.79 |
1.5 |
32.580 |
1.58 |
7 a |
14.747 |
|
32 |
41 |
1.25 |
29.443 |
1.74 |
1.5 |
33.534 |
1.55 |
8 |
16.948 |
|
33 |
42 |
1.25 |
30.463 |
1.70 |
1.5 |
34.532 |
1.54 |
8 |
17.108 |
|
34 |
44 |
1.25 |
31.462 |
1.78 |
1.5 |
35.584 |
1.59 |
8 |
16.928 |
|
35 |
45 |
1.25 |
32.445 |
1.74 |
1.5 |
36.542 |
1.57 |
8 a |
17.088 |
|
36 |
46 |
1.25 |
33.464 |
1.70 |
1.5 |
37.540 |
1.55 |
9 |
19.288 |
|
37 |
48 |
1.25 |
34.462 |
1.78 |
1.5 |
38.588 |
1.60 |
9 |
19.108 |
|
38 |
49 |
1.25 |
35.447 |
1.74 |
1.5 |
39.549 |
1.58 |
9 |
19.268 |
|
39 |
50 |
1.25 |
36.464 |
1.70 |
1.5 |
40.546 |
1.56 |
9 a |
19.428 |
|
40 |
52 |
1.25 |
37.462 |
1.77 |
1.5 |
41.591 |
1.61 |
9 a |
19.247 |
|
42 |
54 |
1.25 |
39.464 |
1.71 |
1.5 |
43.552 |
1.57 |
10 |
21.608 |
|
45 |
58 |
1.25 |
42.464 |
1.71 |
1.5 |
46.556 |
1.58 |
11 |
23.788 |
|
47 |
60 |
1.25 |
44.450 |
1.66 |
1.5 |
48.510 |
1.55 |
11 a |
24.108 |
|
48 |
62 |
1.25 |
45.464 |
1.71 |
1.5 |
49.561 |
1.59 |
11 a |
23.928 |
|
50 |
64 |
1.25 |
47.451 |
1.66 |
1.5 |
51.517 |
1.56 |
12 |
26.288 |
|
52 |
68 |
1.25 |
49.463 |
1.76 |
1.5 |
53.600 |
1.63 |
12 |
25.928 |
|
55 |
72 |
1.25 |
52.463 |
1.76 |
1.5 |
56.602 |
1.64 |
13 |
28.108 |
