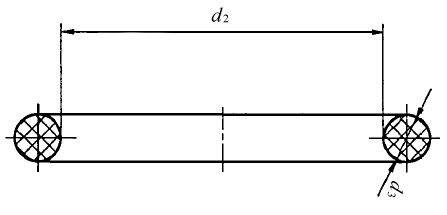

O形圈尺寸(摘自GB/T 3765—2008) mm |
||||
|
F型螺纹油口柱端用O形圈 |
||||
|
D1 |
d2 |
d3 |
||
|
公称尺寸 |
公差 |
公称尺寸 |
公差 |
|
|
M10×1 |
8.1 |
±0.2 |
1.6 |
±0.08 |
|
M12×1.5 |
9.3 |
±0.2 |
2.2 |
±0.08 |
|
M14×1.5 |
11.3 |
±0.2 |
2.2 |
±0.08 |
|
M16×1.5 |
13.3 |
±0.2 |
2.2 |
±0.08 |
|
M18×1.5 |
15.3 |
±0.2 |
2.2 |
±0.08 |
|
M20×1.5 |
17.3 |
±0.22 |
2.2 |
±0.08 |
|
M22×1.5 |
19.3 |
±0.22 |
2.2 |
±0.08 |
|
M27×2 |
23.6 |
±0.24 |
2.9 |
±0.09 |
|
M33×2 |
29.6 |
±0.29 |
2.9 |
±0.09 |
|
M42×2 |
38.6 |
±0.37 |
2.9 |
±0.09 |
|
M48×2 |
44.6 |
±0.43 |
2.9 |
±0.09 |
