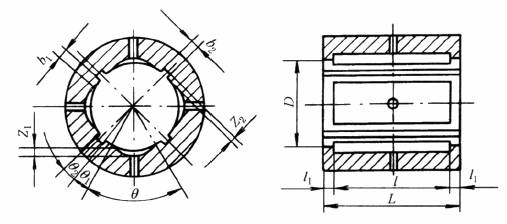

径向轴承的D、L/D、L、l1、l尺寸 cm |
||||||
|
|
||||||
|
D |
L/D |
L |
l1/D |
|||
|
0.1 |
0.2 |
|||||
|
l1 |
l |
l1 |
l |
|||
|
3 |
0.6 1.0 1.5 |
1.8 3.0 4.5 |
0.3 0.3 0.3 |
1.2 2.4 3.9 |
0.6 0.6 0.6 |
0.6 1.8 3.3 |
|
4 |
0.6 1.0 1.5 |
2.4 4.0 6.0 |
0.4 0.4 0.4 |
1.6 3.2 5.2 |
0.8 0.8 0.8 |
0.8 2.4 4.4 |
|
5 |
0.6 1.0 1.5 |
3.0 5.0 7.5 |
0.5 0.5 0.5 |
2.0 4.0 6.5 |
1.0 1.0 1.0 |
1.0 3.0 5.5 |
|
6 |
0.6 1.0 1.5 |
3.6 6.0 9.0 |
0.6 0.6 0.6 |
2.4 4.8 7.8 |
1.2 1.2 1.2 |
1.2 3.6 6.6 |
|
7 |
0.6 1.0 1.5 |
4.2 7.0 10.5 |
0.7 0.7 0.7 |
2.8 5.6 9.1 |
1.4 1.4 1.4 |
1.4 4.2 7.7 |
|
8 |
0.6 1.0 1.5 |
4.8 8.0 12.0 |
0.8 0.8 0.8 |
3.2 6.4 10.4 |
1.6 1.6 1.6 |
1.6 4.8 8.8 |
|
9 |
0.6 1.0 1.5 |
5.4 9.0 13.5 |
0.9 0.9 0.9 |
3.6 7.2 11.7 |
1.8 1.8 1.8 |
1.8 5.4 9.9 |
|
10 |
0.6 1.0 1.5 |
6.0 10.0 15.0 |
1.0 1.0 1.0 |
4.0 8.0 13.0 |
2.0 2.0 2.0 |
2.0 6.0 11.0 |
|
12 |
0.6 1.0 1.5 |
7.2 12.0 18.0 |
1.2 1.2 1.2 |
4.8 9.6 15.6 |
2.4 2.4 2.4 |
2.4 7.2 13.2 |
|
14 |
0.6 1.0 1.5 |
8.4 14.0 21.0 |
1.4 1.4 1.4 |
5.6 11.2 18.2 |
2.8 2.8 2.8 |
2.8 8.4 15.4 |
|
15 |
0.6 1.0 1.5 |
9.0 15.0 22.5 |
1.5 1.5 1.5 |
6.0 12.0 19.5 |
3.0 3.0 3.0 |
3.0 9.0 16.5 |
|
16 |
0.6 1.0 1.5 |
9.6 16.0 24.0 |
1.6 1.6 1.6 |
6.4 12.8 20.8 |
3.2 3.2 3.2 |
3.2 9.6 1.67 |
|
18 |
0.6 1.0 1.5 |
10.8 18.0 27.0 |
1.8 1.8 1.8 |
7.2 14.4 23.4 |
3.6 3.6 3.6 |
3.6 10.8 19.8 |
|
20 |
0.6 1.0 1.5 |
12.0 20.0 30.0 |
2.0 2.0 2.0 |
8.0 16.0 26.0 |
4.0 4.0 4.0 |
4.0 12.0 22.0 |
