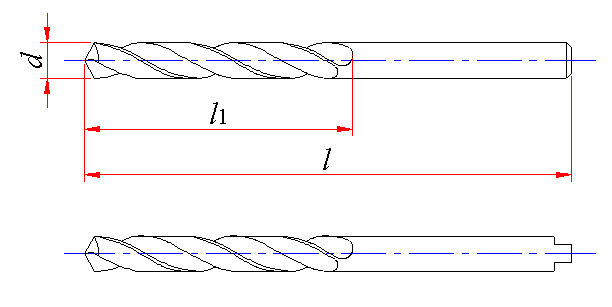

直柄短麻花钻 (摘自GB/T6135.2—1996) (mm)
|
|||||
|
d h8 |
l1 |
l |
d h8 |
l1 |
l |
|
0.50 |
3 |
20 |
18.50 |
64 |
127 |
|
0.80 |
5 |
24 |
18.75 |
||
|
1.00 |
6 |
26 |
19.00 |
||
|
1.20 |
8 |
30 |
19.25 |
66 |
131 |
|
1.50 |
9 |
32 |
19.50 |
||
|
1.80 |
11 |
36 |
19.75 |
||
|
2.00 |
12 |
38 |
20.00 |
||
|
2.20 |
13 |
40 |
20.25 |
68 |
136 |
|
2.50 |
14 |
43 |
20.50 |
||
|
2.80 |
16 |
46 |
20.75 |
||
|
3.00 |
21.00 |
||||
|
3.20 |
18 |
49 |
21.25 |
70 |
141 |
|
3.50 |
20 |
52 |
21.50 |
||
|
3.80 |
22 |
55 |
21.75 |
||
|
4.00 |
22.00 |
||||
|
4.20 |
22.25 |
||||
|
4.50 |
24 |
58 |
22.50 |
72 |
146 |
|
4.80 |
26 |
62 |
22.75 |
||
|
5.00 |
23.00 |
||||
|
5.20 |
23.25 |
||||
|
5.50 |
28 |
66 |
23.50 |
||
|
5.80 |
23.75 |
75 |
151 |
||
|
6.00 |
24.00 |
||||
|
6.20 |
31 |
70 |
24.25 |
||
|
6.50 |
24.50 |
||||
|
6.80 |
34 |
74 |
24.75 |
||
|
7.00 |
25.00 |
||||
|
7.20 |
25.25 |
78 |
156 |
||
|
7.50 |
25.50 |
||||
|
7.80 |
37 |
79 |
25.75 |
||
|
8.00 |
26.00 |
||||
|
8.20 |
26.25 |
||||
|
8.50 |
26.50 |
||||
|
8.80 |
40 |
84 |
26.75 |
81 |
162 |
|
9.00 |
27.00 |
||||
|
9.20 |
27.25 |
||||
|
9.50 |
27.50 |
||||
|
9.80 |
43 |
89 |
27.75 |
||
|
10.00 |
28.00 |
||||
|
10.20 |
28.25 |
84 |
168 |
||
|
10.50 |
28.50 |
||||
|
10.80 |
47 |
95 |
28.75 |
||
|
11.00 |
29.00 |
||||
|
11.20 |
29.25 |
||||
|
11.50 |
29.50 |
||||
|
11.80 |
29.75 |
||||
|
12.00 |
51 |
102 |
30.00 |
||
|
12.20 |
30.25 |
87 |
174 |
||
|
12.50 |
30.50 |
||||
|
12.80 |
30.75 |
||||
|
13.00 |
31.00 |
||||
|
13.20 |
31.25 |
||||
|
13.50 |
54 |
107 |
31.50 |
||
|
13.80 |
31.75 |
90 |
180 |
||
|
14.00 |
32.00 |
||||
|
14.25 |
56 |
111 |
32.50 |
||
|
14.50 |
33.00 |
||||
|
14.75 |
33.50 |
||||
|
15.00 |
34.00 |
93 |
186 |
||
|
15.25 |
58 |
115 |
34.50 |
||
|
15.50 |
35.00 |
||||
|
15.75 |
35.50 |
||||
|
16.00 |
36.00 |
96 |
193 |
||
|
16.25 |
60 |
119 |
36.50 |
||
|
16.50 |
37.00 |
||||
|
16.75 |
37.50 |
||||
|
17.00 |
38.00 |
100 |
200 |
||
|
17.25 |
62 |
123 |
38.50 |
||
|
17.50 |
39.00 |
||||
|
17.75 |
39.50 |
||||
|
18.00 |
40.00 |
||||
|
18.25 |
64 |
127 |
|||
