总圈数n1、自由高度H0、压并高度Hb计算公式 |
||||
|
结构型式 |
总圈数n1 |
自由高度H0 |
压并高度Hb |
|
|

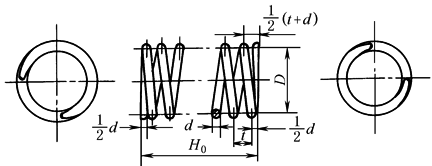

端部不并紧不磨平 |
|
n |
nt+d |
(n+1)d |
|

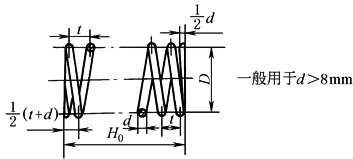

端部不并紧磨平1/4圈 |
|
|
nt |
(n+1)d |
|
端部并紧不磨平，支承圈为1圈 |
|
n+2 |
nt+3d |
(n+3)d |
|

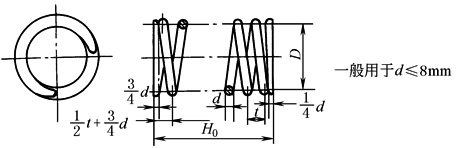

端部不并紧磨平，支承圈为3/4圈 |
|
n+1.5 |
nt+d |
(n+1)d |
|
端部并紧磨平，支承圈为1圈 |
|
n+2 |
nt+1.5d |
(n+1.5)d |
|
端部并紧磨平，支承圈为 1圈 |
|
n+2.5 |
nt+2d |
(n+2)d |
